KWS-3 'VerySANS'

(V)SANS Cells

normally available at the instruments

Starna: Catalog-2021 Hellma: Cuvette-Finder

Hellma Cells 404:

Usually for liquid samples

Type	Path	Volume	H×W×D, mm³
404-QX	0.5mm	350µL	47.5×23.6×7.5
404-QX	1mm	700µL	47.5×23.6×7.5
404-QX	2mm	1400µ	47.5×23.6×7.5
404-QX	5mm	3500µL	47.5×23.6×12.5

Hellma Cells 110:

Usually for liquid samples

Type	Path	Volume	H×W×D, mm³
110-QX	1mm	350µL	52×12.5×3.5
110-QX	2mm	700µL	52×12.5×4.5

Hellma Cells 100:

Usually for liquid samples

Type	Path	Volume	H×W×D, mm³
100-QX	1mm	350µL	52×12.5×3.5
100-QX	2mm	700µL	52×12.5×4.5

Hellma Cells 120:

Usually for liquid samples

Type	Path	Volume	Ø×D, mm²
120-QS	1mm	280µL	22×3.5
120-QS	2mm	560µL	22×4.5
120-QS	5mm	1400µL	22×7.5

Hellma Cells 124:

Usually for Powders

(Demountable)

Type	Path	Volume	Ø×D, mm²
124-QS	0.1mm	18µL	22×2.7
124-QS	0.2mm	35µL	22×2.7
124-QS	0.5mm	85µL	22×2.7

Starna Cells T20:

Usually for Powders

(Demountable)

Type	Path	Volume	H×W×D, mm³
Type-20	0.05mm	18µL	0.05x10x38
Type-20	0.1mm	36µL	0.1x10x38
Type-20	0.2mm	72µL	0.2x10x38

Starna Flow-Through Cells:

for in-situ experiments

Type	Path	Volume	H×W×D, mm³
45-Q-0.5	0.5mm	flexible	40+tubesx12x3

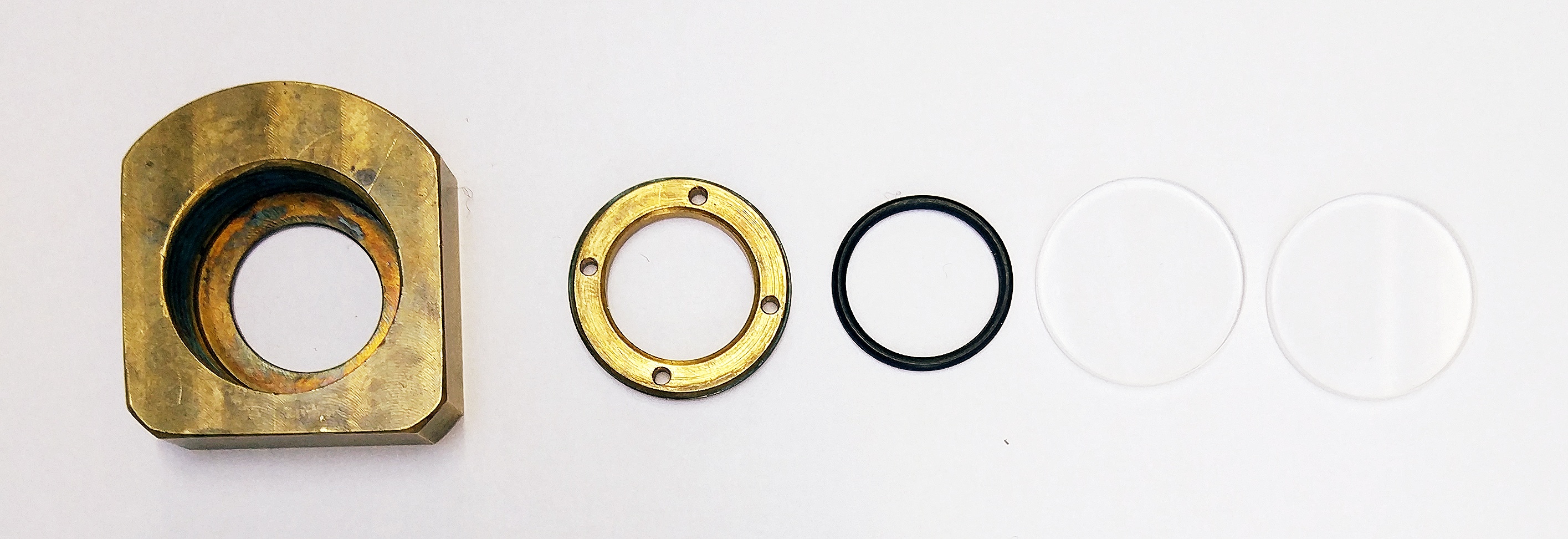

Brass-Sandwich-Cells:

for gel & viscous samples

Type	Path	Volume	H×W×D, mm³	Ø,mm
Home-made	0.1-2mm	225µL	10x31x31	16

Glass-Sandwich-Cells:

for powders-gel-samples

Spacer	Thickness	Shape	T×W×D / Ø
PTEE	1mm	Rectangle	3x29x40mm³
PTEE	1mm	Rectangle	3x21x29mm³
PTEE	1mm	Round	22mm
2-sided tape	0.1-1mm	Rectangle	(2.1-3)x29x40mm³
2-sided tape	0.1-1mm	Rectangle	(2.1-3)x21x40mm³
2-sided tape	0.1-1mm	Round	22mm
