KWS-3 'VerySANS'

Temperature Control

Peltier Heating/Cooling Sample Block: Rapid, precise temperature control

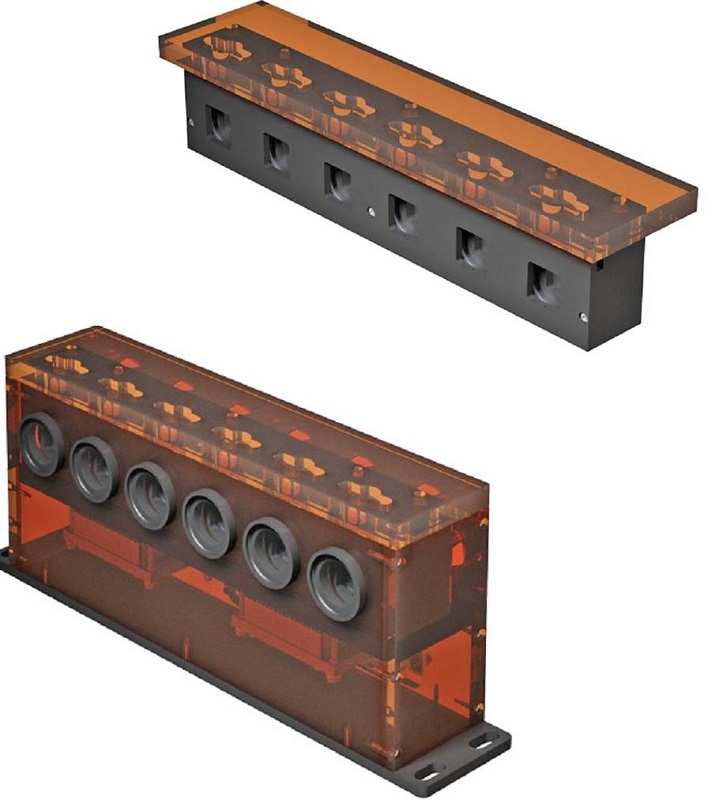

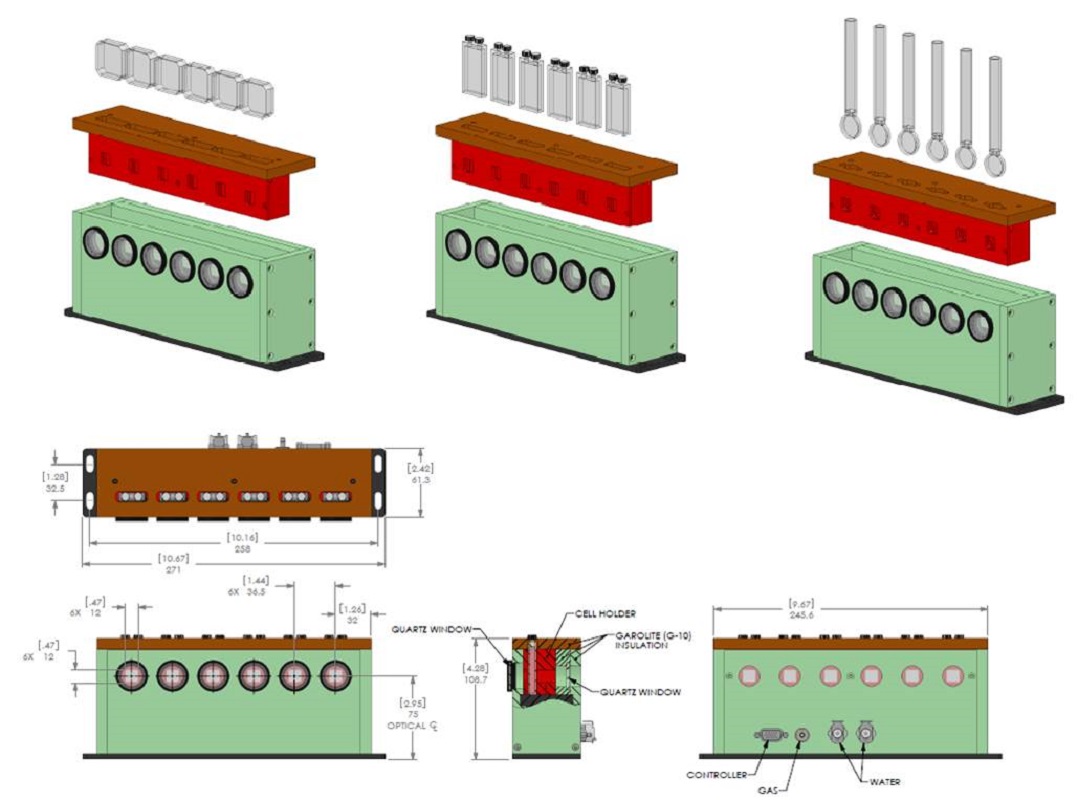

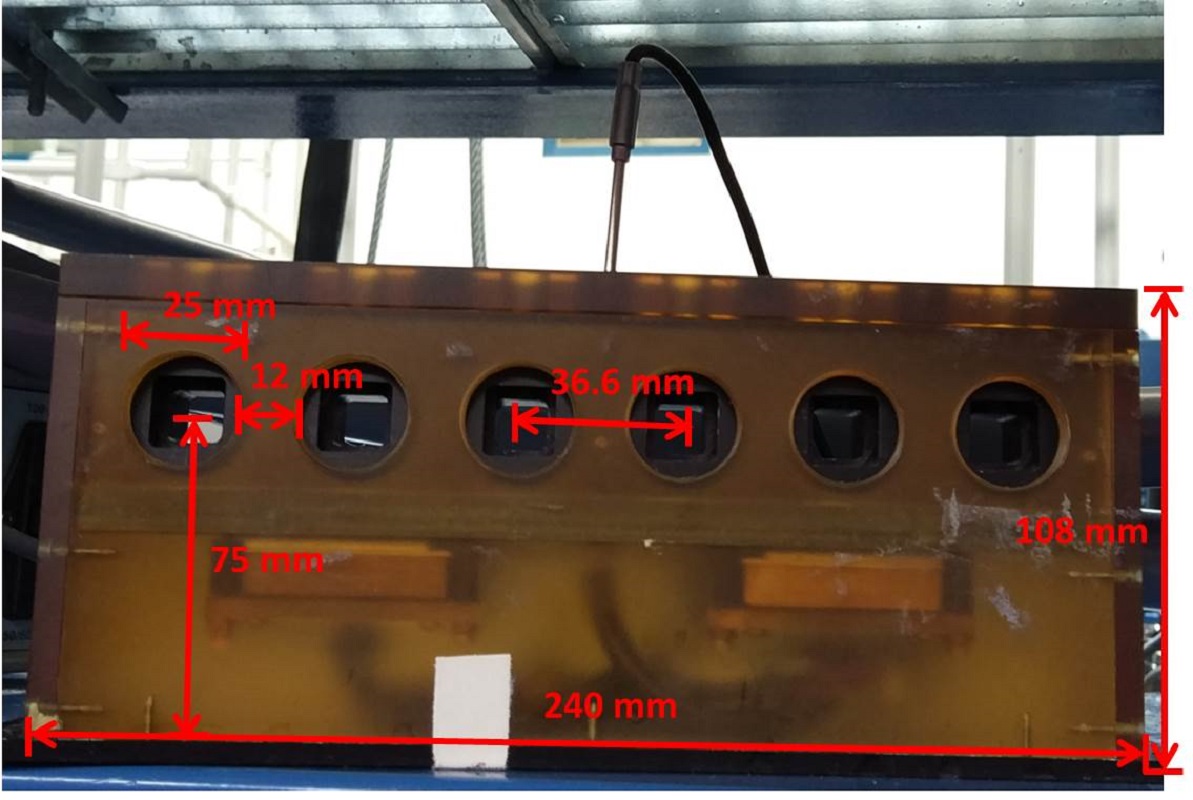

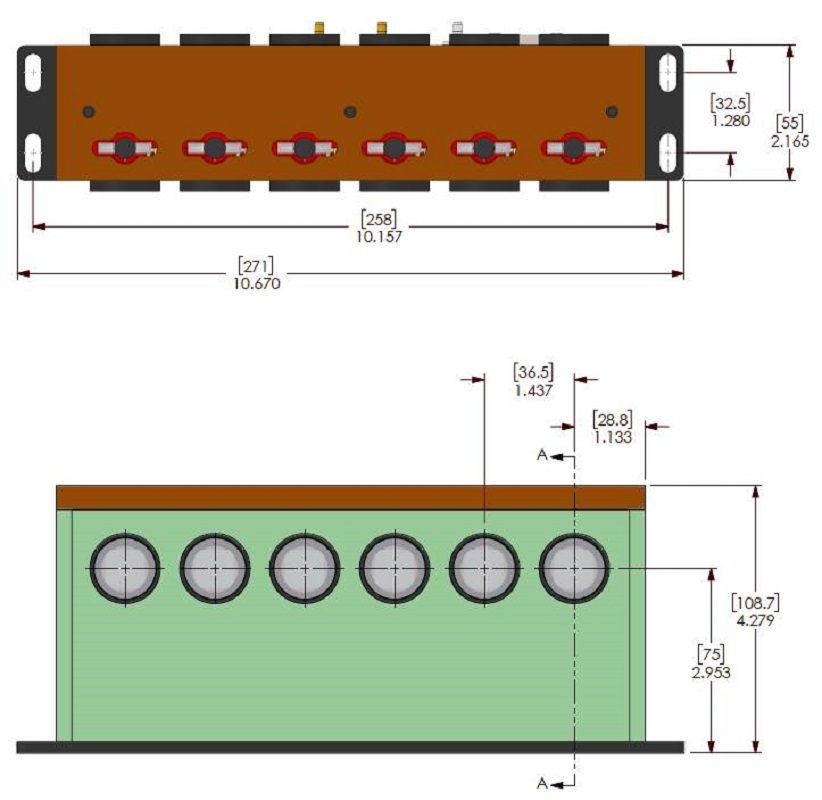

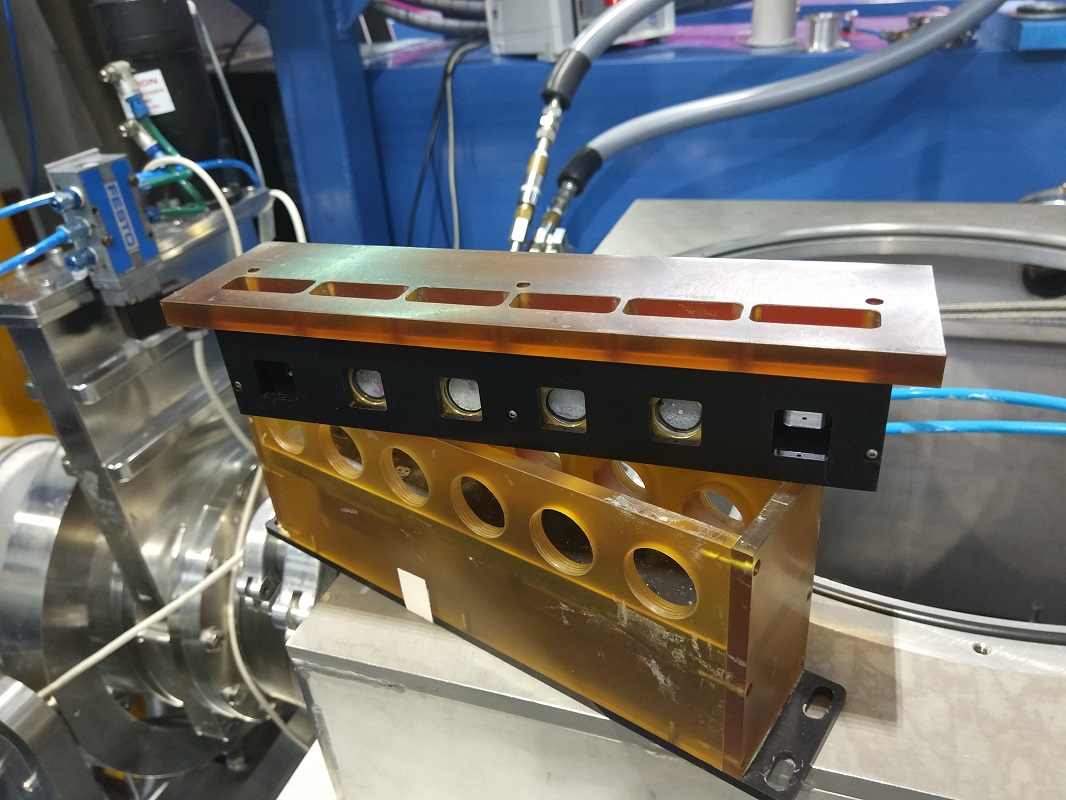

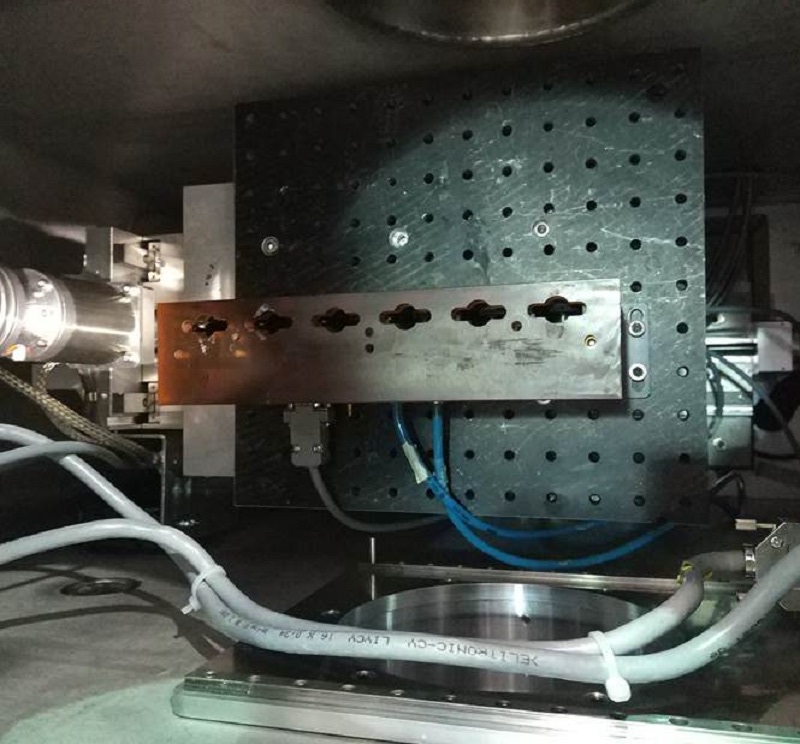

1. The 6-pos. Peltier sample holder (SN6)

The NeutroniQ 6 provides temperature control from below zero to +140 °C for six cell carriages. These six carriages are powered by a single 24-Volt TC 1 Temperature Controller, which maintains a single temperature for all six carriages. A generous spacing between cells permits measurement at wide scattering angles. Typically, sample carriages support Hellma cuvettes. The carriages may be screwed down in place for good thermal contact. Windows at the beam entrance and behind the cuvette, provide a temperature controlled chamber. The exit window is enlarged to permit measurement of scattered neutrons.

Technical specifications

Code:	JPE-1-JCNS
Number of cells controlled:	6
Temperature easily achievable:	-15°C to 140°C
Temperature precision:	±0.02°C
Cells/cuvettes:	Hellma 404/110/120-QX, Brass-Sandwich-Cells
Entrance port diameter:	14 mm
Exit port diameter:	25.0 mm
Distance between cuvettes:	36.6 mm

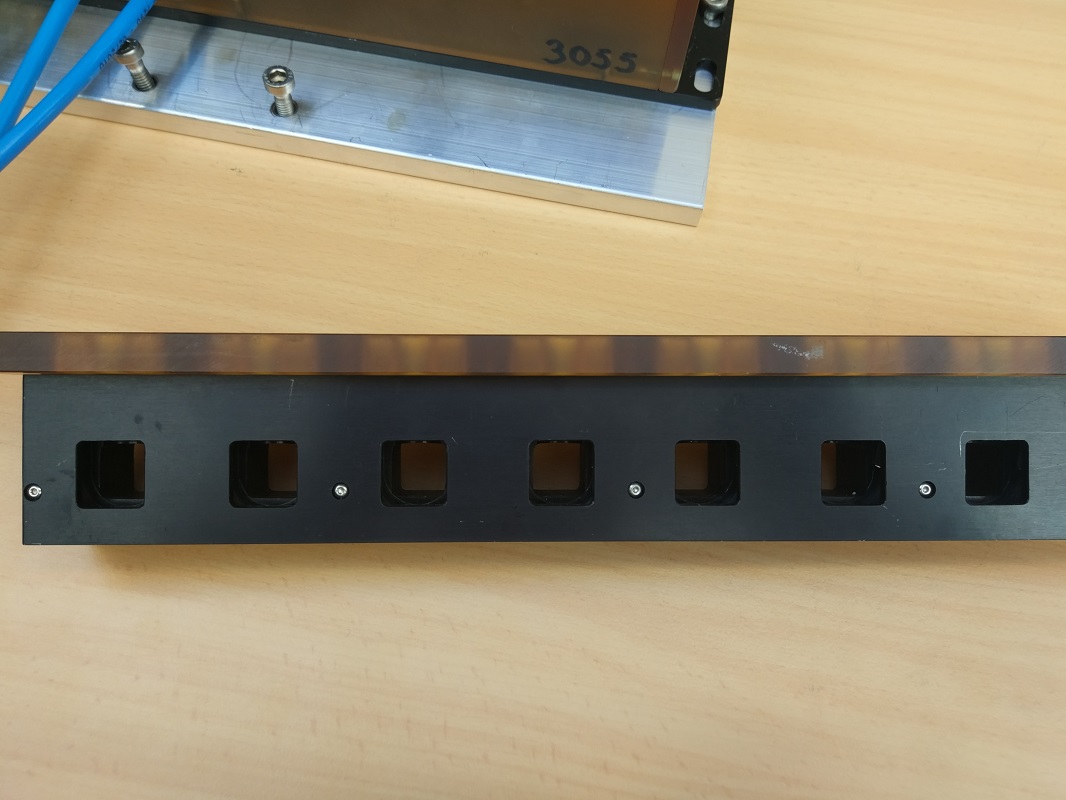

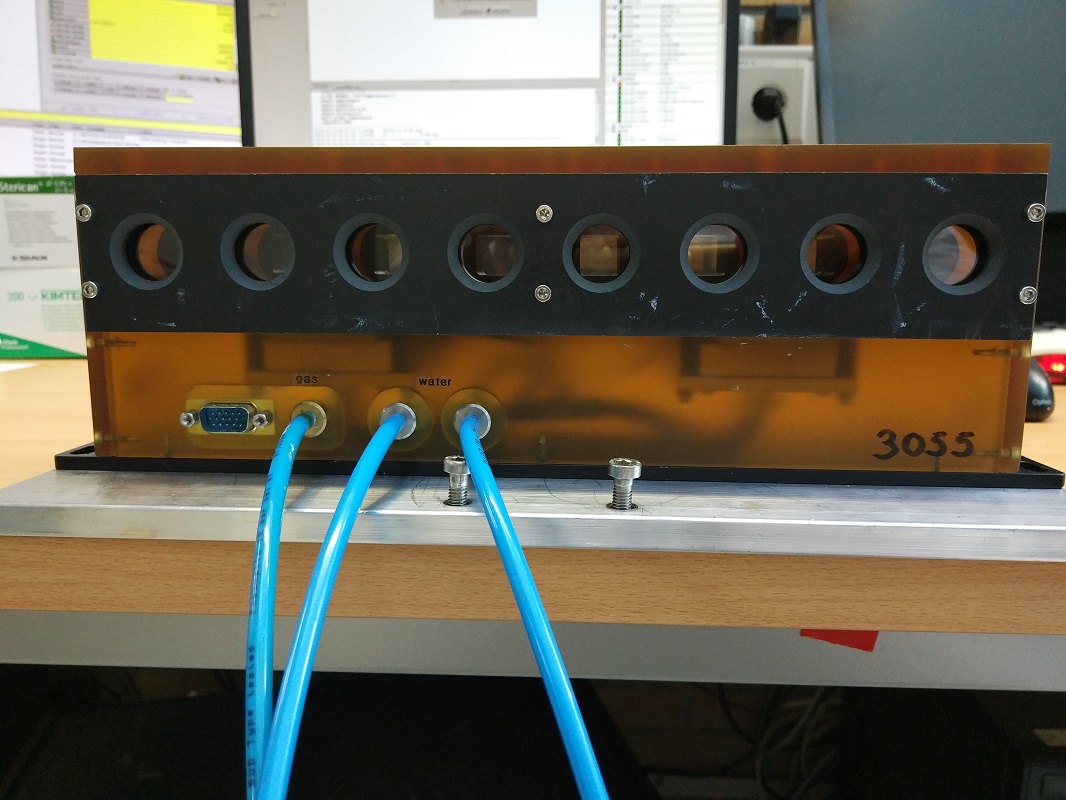

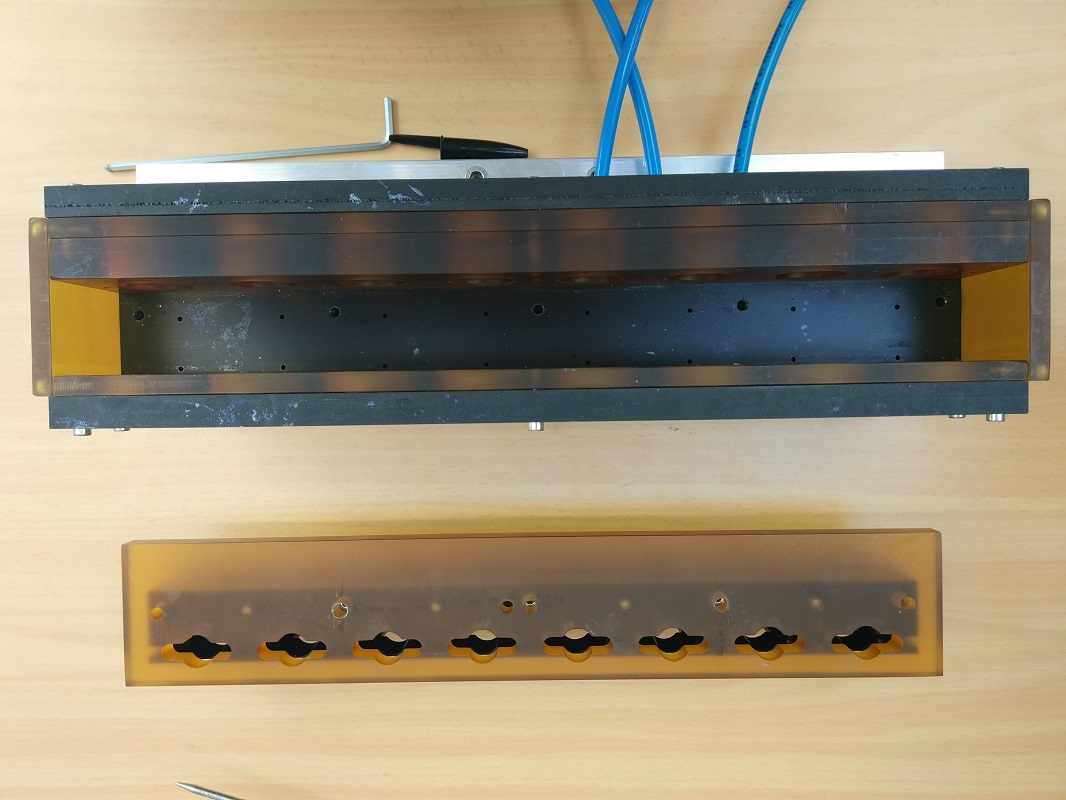

2. The 8-pos. Peltier sample holder (NeutroniQ 1×8)

The NeutroniQ 1×8 provides temperature control from below zero to +140 °C for eight cell carriages. Typically, sample carriages support Hellma cuvettes. The carriages may be screwed down in place for good thermal contact. Windows at the beam entrance and behind the cuvette, provide a temperature-controlled chamber. The exit window is enlarged to permit measurement of scattered neutrons.|

Technical specifications

Code:	JPE-2-JCNS
Number of cells controlled:	8
Temperature easily achievable:	-15°C to 140°C
Temperature precision:	±0.02°C
Cells/cuvettes:	Hellma 404/110/120-QX, Brass-Sandwich-Cells
Entrance port diameter:	14 mm
Exit port diameter:	24.0 mm
Distance between cuvettes:	36.6 mm

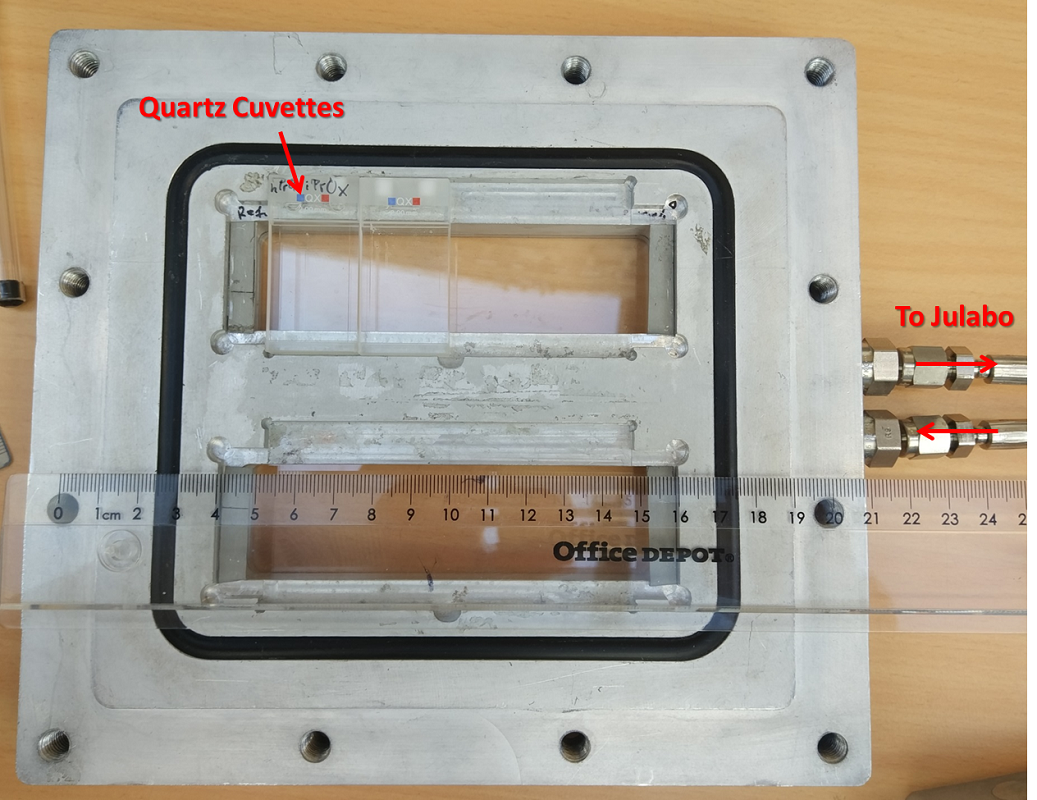

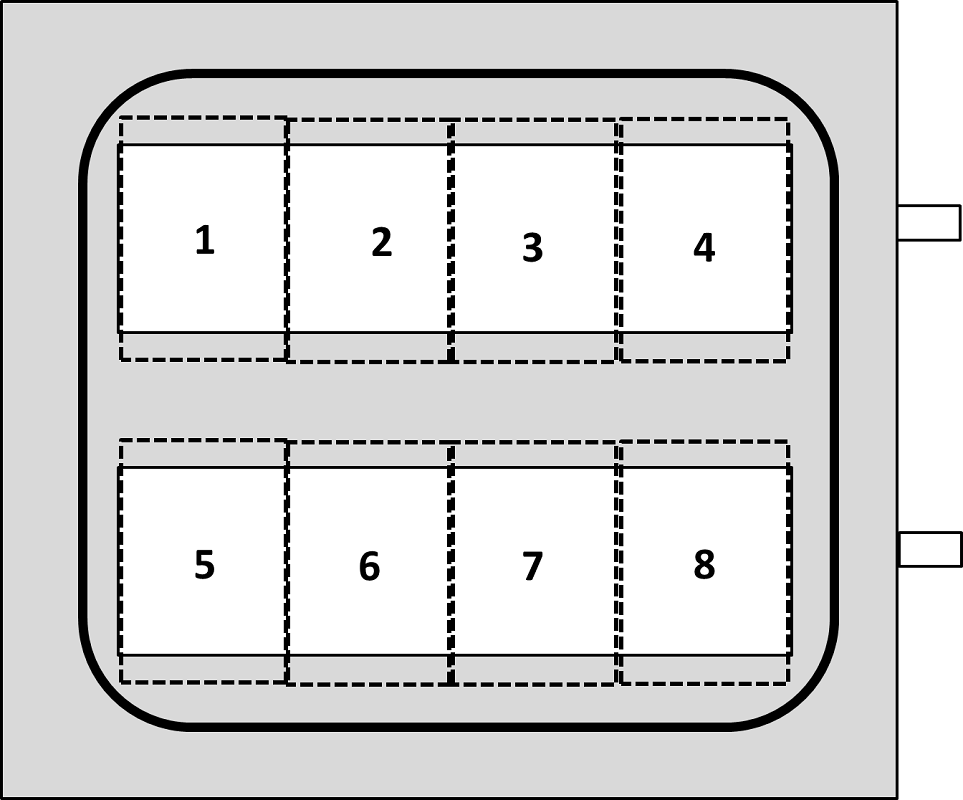

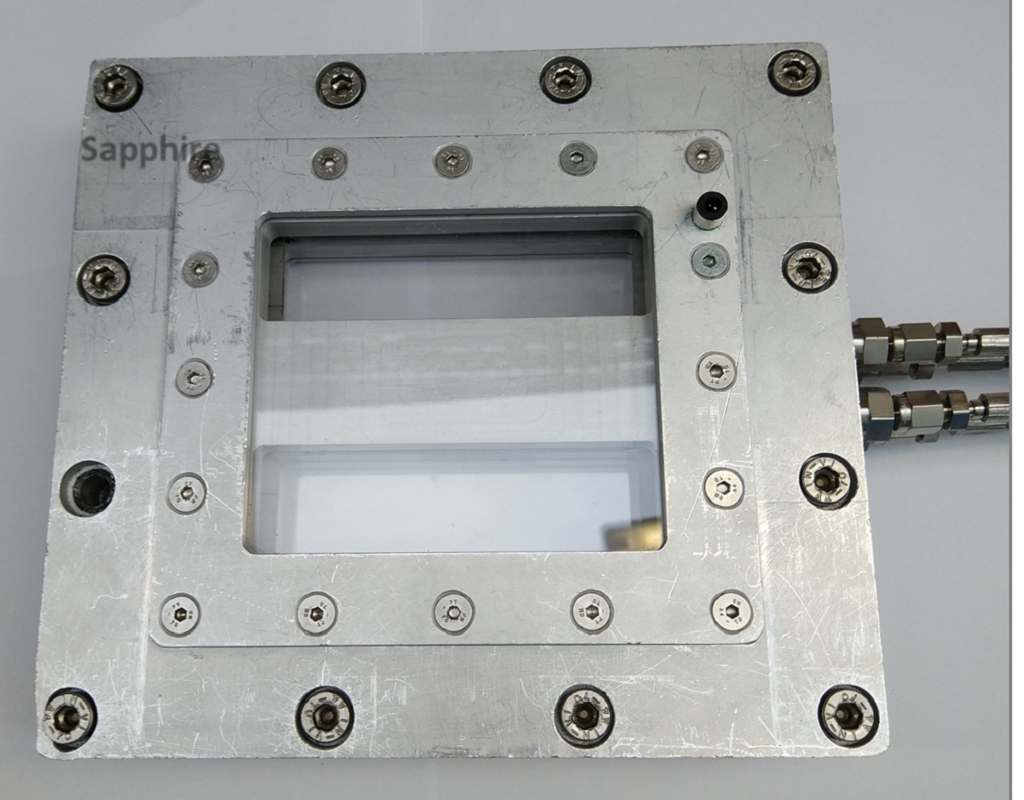

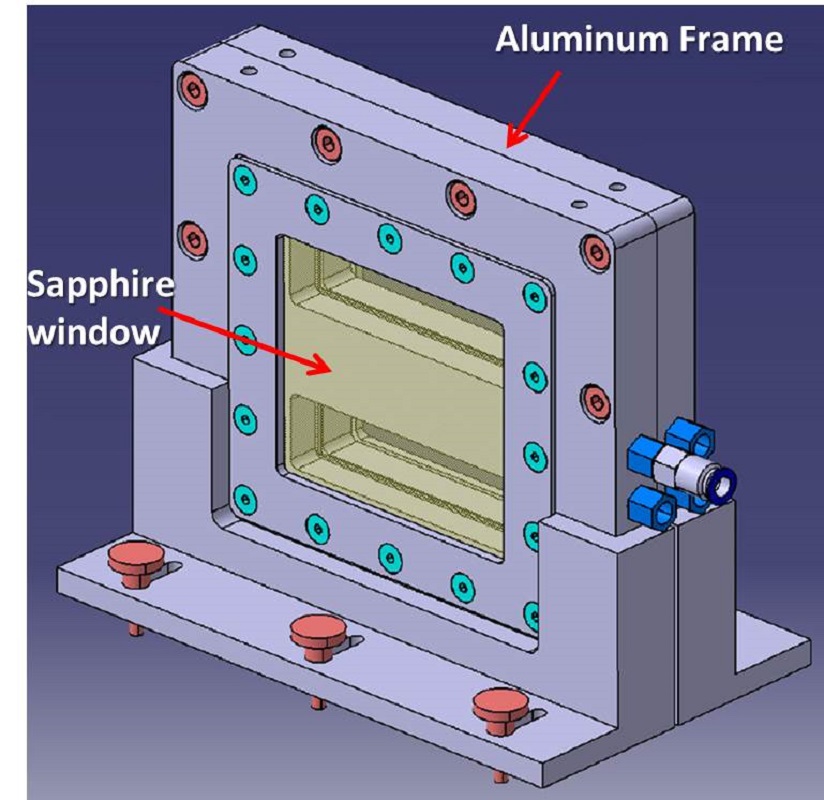

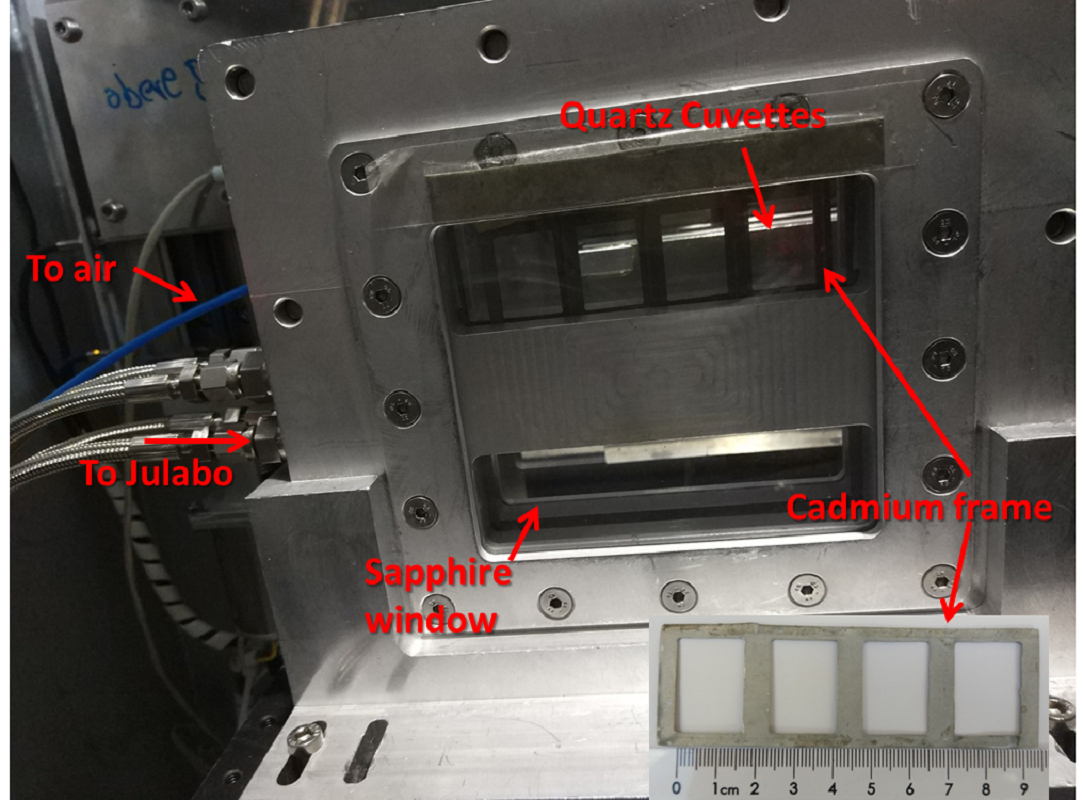

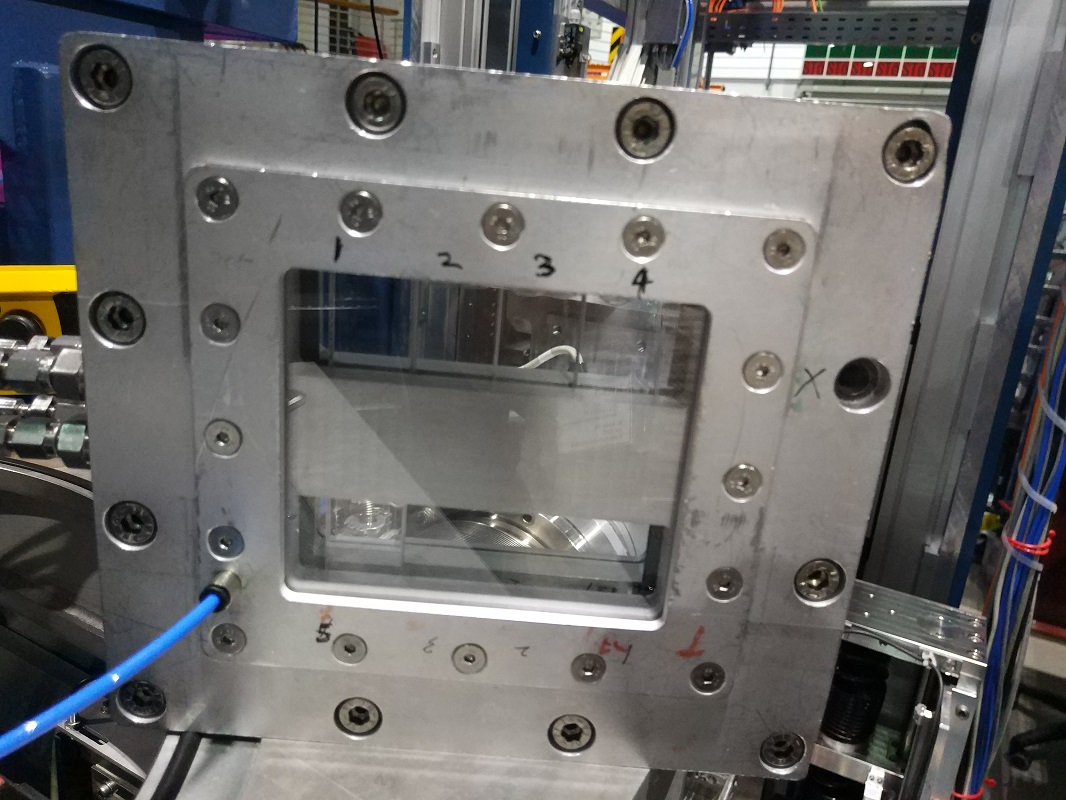

3. The Aluminum cells in vacuum with temperature variation

Technical specifications

Code:	Vacuum Al
Number of cells controlled:	8/16
Temperature easily achievable:	10°C to 85°C
Temperature precision:	±0.5°C in vacuum, < 50°C
Cells/cuvettes:	Hellma 404/110/120-QX, Sandwich-Cells
Distance between cuvettes:	24 mm for Hellma 404QX
Distance between different levels:	65 mm
Working conditions:	Vacuum and air

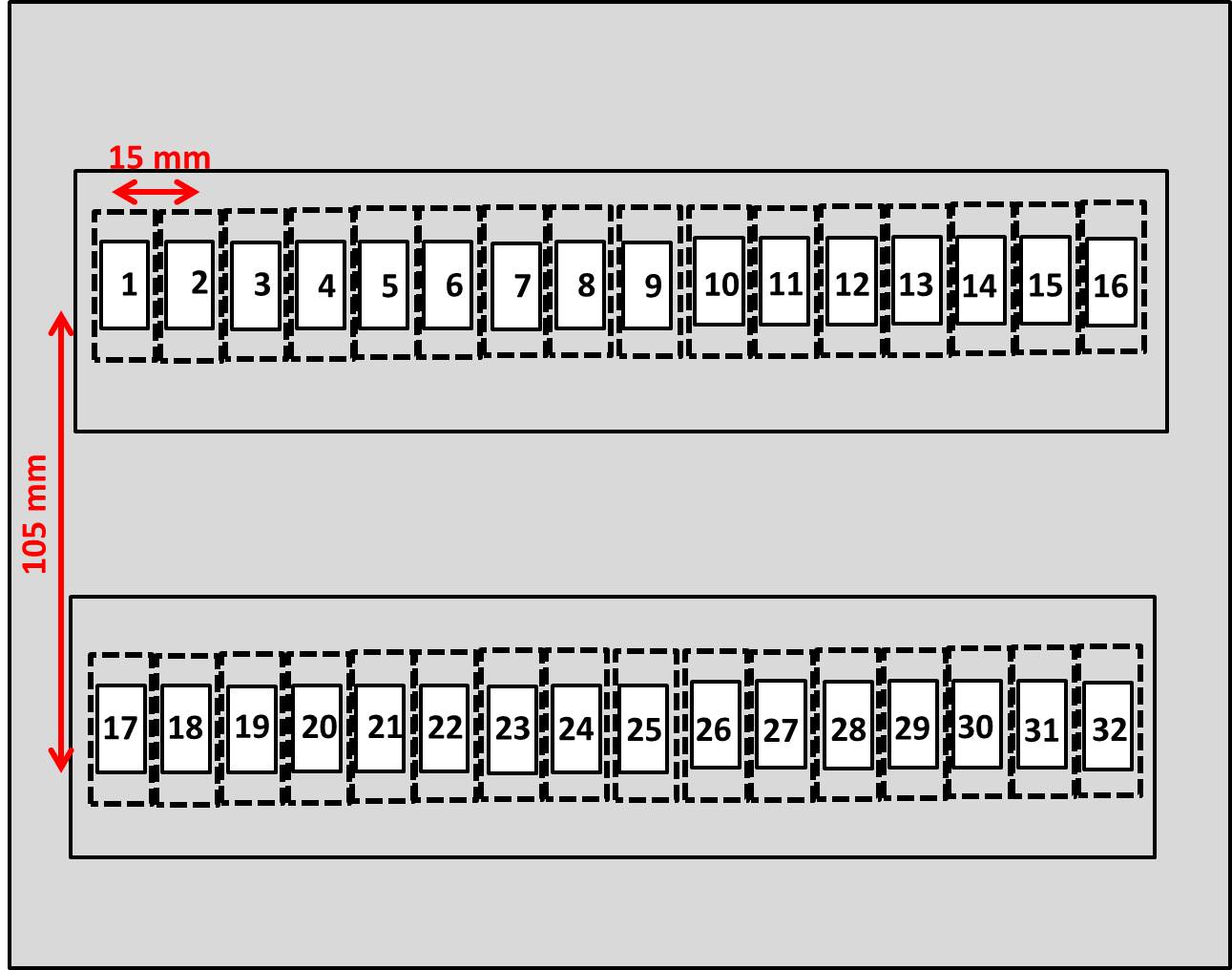

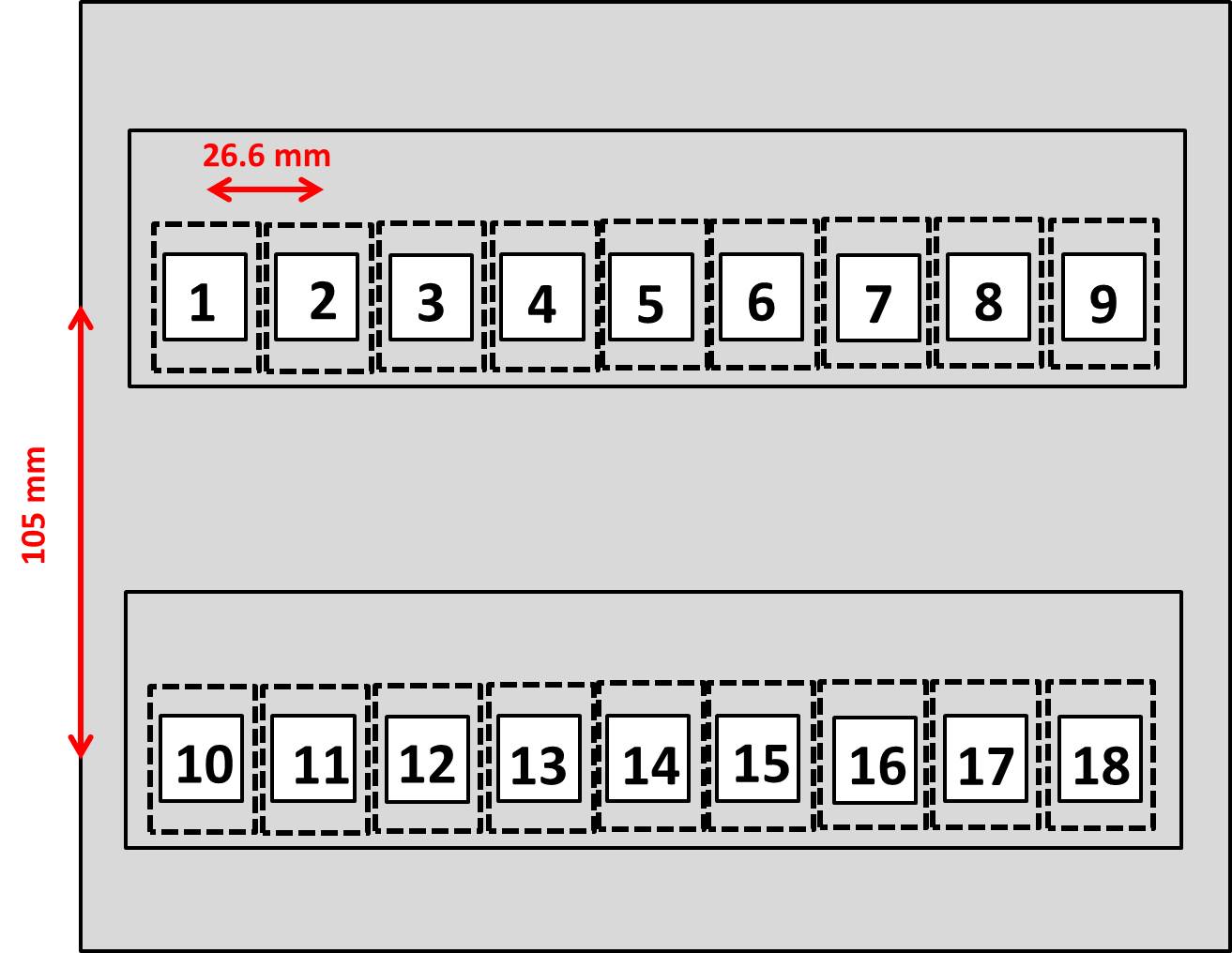

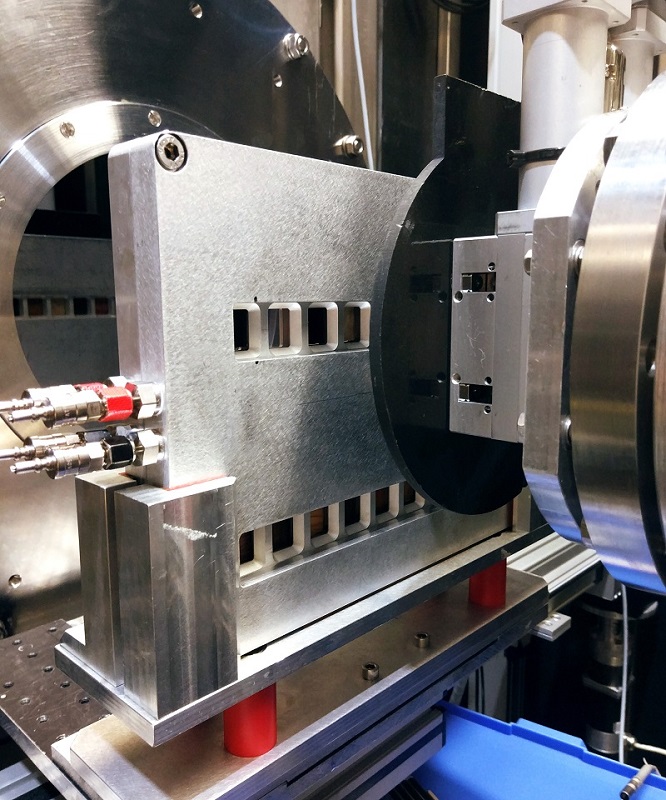

4. The Aluminum sample changers with temperature variation (working at air conditions)

Technical specifications

Code:	Vacuum Al
Number of cells controlled:	9/32
Temperature easily achievable:	10°C to 50°C
Temperature precision:	±0.5°C in vacuum, < 50°C
Cells/cuvettes:	Hellma 404/110/120-QX, Sandwich-Cells
Distance between cuvettes:	26.6mm/(404QX)&15mm(110/100QX)
Distance between different levels:	105mm
Working conditions:	Vacuum and air

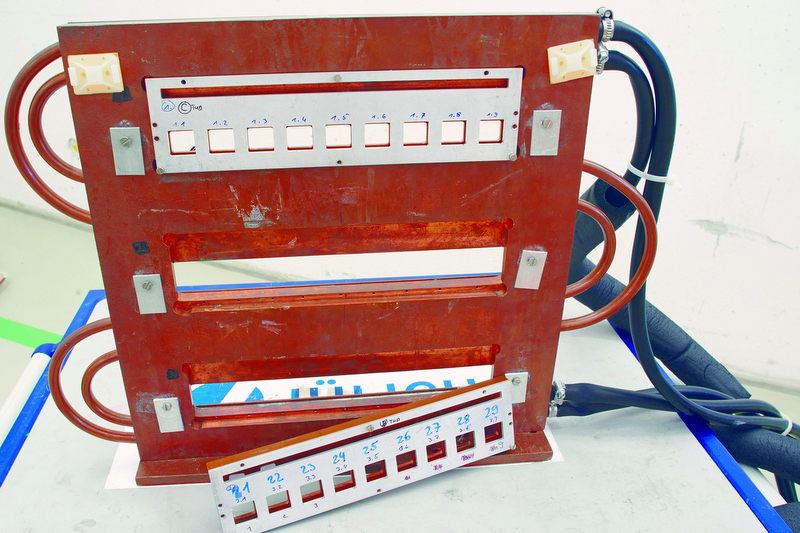

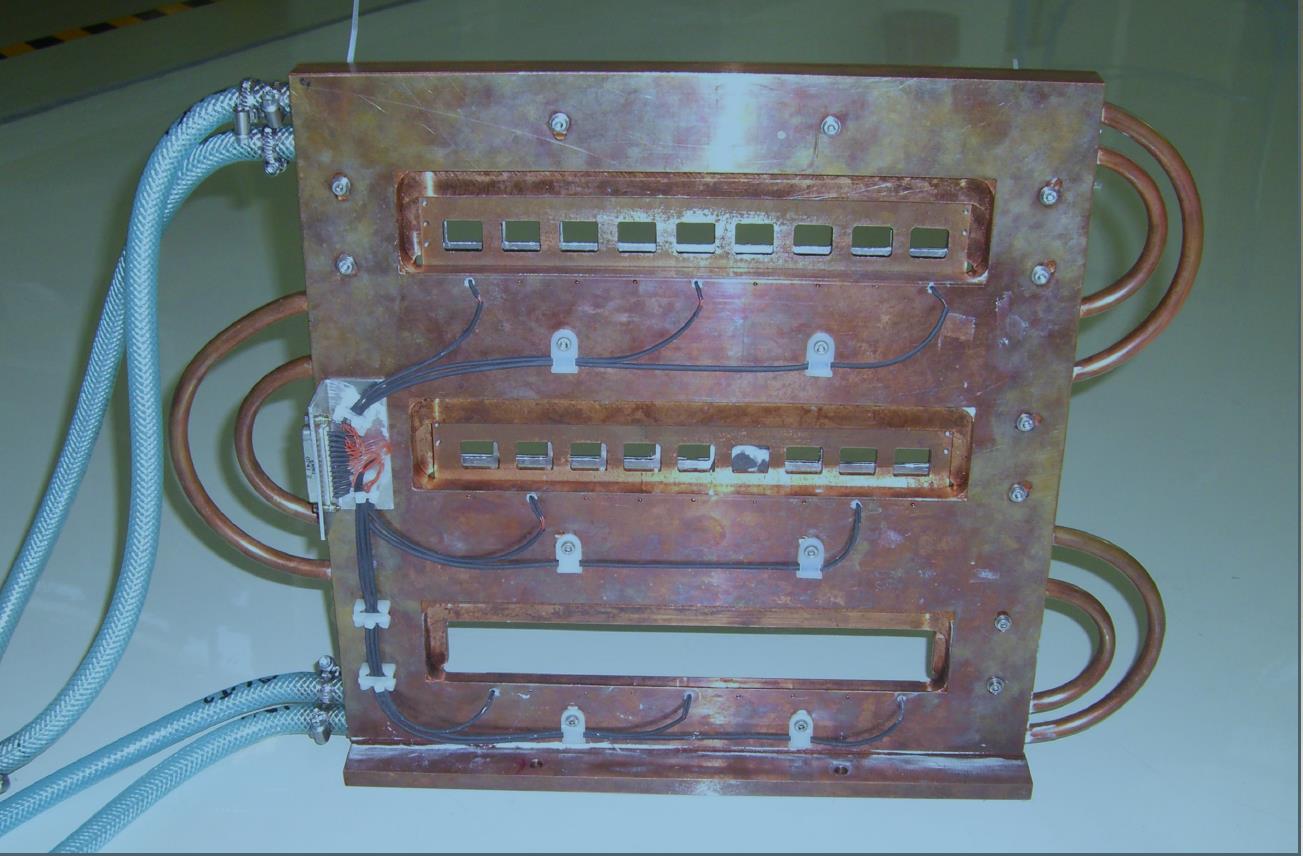

5. Oil & water thermostats & Electric thermostat

Technical specifications

Code:	Thermo-1
Number of cells controlled:	8-32
Temperature easily achievable:	-10°C to 12°C (220 °C with silicon oil)
Temperature precision:	±1°C < 50°C
Cells/cuvettes:	Hellma 404QX, Sandwich-Cells
Working conditions:	Air

::: Multiple-Position Sample Changers with Temperature Variation ::: More-Position, precise temperature control

::: Furnace ::: Ultra high temperature

6. NSE High temperature furnace Air & Vacuum

Technical specifications
Code:	Furnace JNSE
Number of cells controlled:	1
Temperature easily achievable:	RT to 400°C
Cells/cuvettes:	Hellma 404/110/120-QX, Sandwich-Cells
Working conditions:	Vacuum and air

—————————————————————————————————————————————————————-

7. HTF furnace (RT– 1900°C Vacuum & 900°C Air)

The heater of the high temperature furnace (HTF) consist of a resistive Nb double cylinder element. Radiation shields made of Nb reduce the thermal loss. Maximum reachable temperature is 1900 °C. For temperatures up to 300 °C the furnace can be filled with Ar or He exchange gas to improve regulation stability. Further a special version of the furnace with a reduced diameter for usage inside the CCM-7.5T vertical magnet is available.

Technical specifications
Code:	HTF-3 SANS
Number of cells controlled:	1
Temperature range in vacuum:	RT to 1900°C
Temperature range in gas:	RT to 900°C
Cells/cuvettes:	Sandwich-Cells
Working conditions:	Vacuum and air
Sample rod tail:	M8 (male)
Diameter of sample space:	45 mm
Height of sample space:	100 mm
Sample rod tail:	M8 (male)

::: Cryostat ::: Ultra low temperature

8. Sample Tube Top-Loader Closed Cycle Refrigerator Cryostat with sapphire windows

This type of cryostat is a combination of a cryostat with a sample tube and an exchangeable sample stick mounted within the sample tube. It provides the following features:

Code:	JLC-4-JCNS
Number of cells controlled:	1
Temperature range in vacuum:	5 to 500K
Cells/cuvettes:	Sandwich-Cells
Working conditions:	With gas
Sample rod tail:	plate

Code:	JLC-3-JCNS
Number of cells controlled:	1
Temperature range in vacuum:	3 to 320K
Cells/cuvettes:	Sandwich-Cells
Working conditions:	With gas
Sample rod tail:	plate
